Product Name：FBK Series Single-Phase Control Transformer

Inquire

Previous：FJBK3 Series Single-Phase Machine Tool Control Transformer

Next：S11 Series 33KV Three-Phase Oil-Immersed Power Transformer

Product Overview

FBK series control transformers (hereinafter referred to as transformers) are suitable for circuits with voltages up to 500V and frequencies of 50~60Hz. They are usually used as power sources for machine tool control electrical equipment, local lighting, and indicator lights.

The FBK series machine tool control transformers can be divided into enclosed types based on their structure and vertical types based on their installation methods.

Model Designation

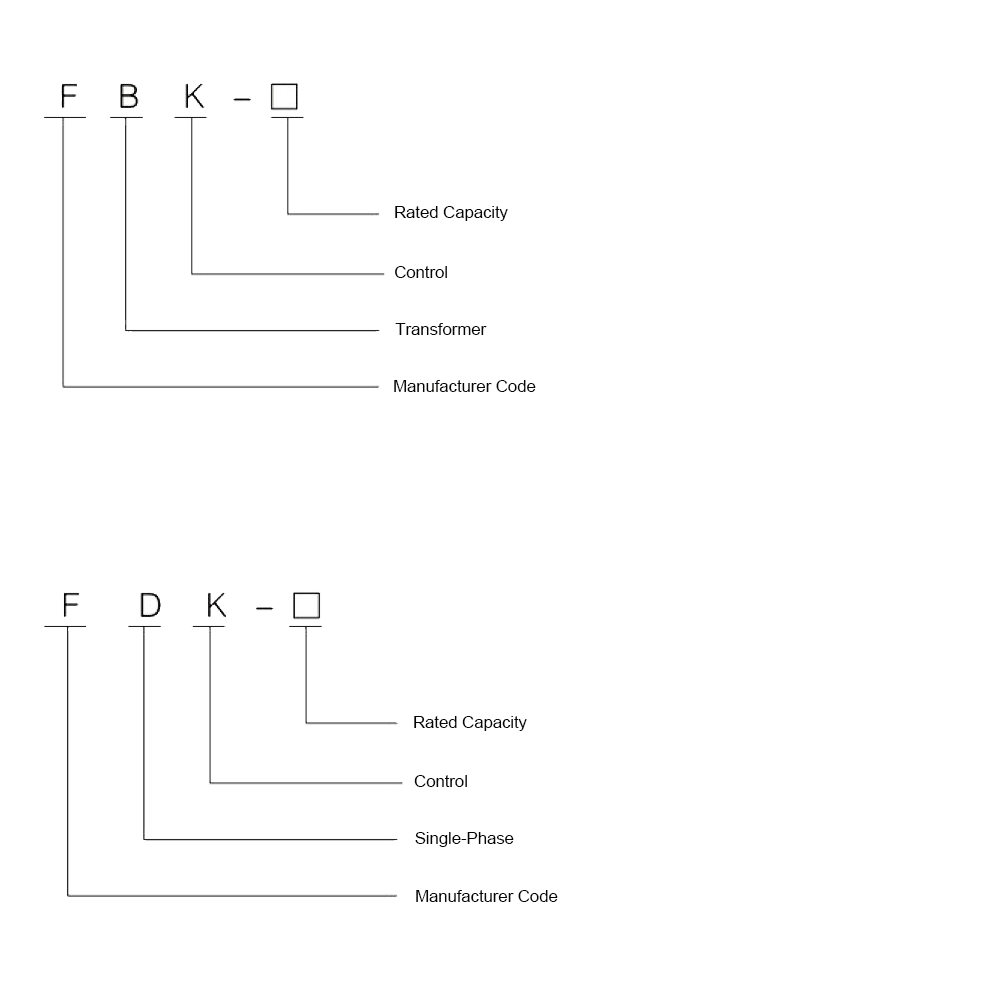

The Model Designation of the FBK Series Single-Phase Control Transformer

External Dimensions And Mounting Dimensions

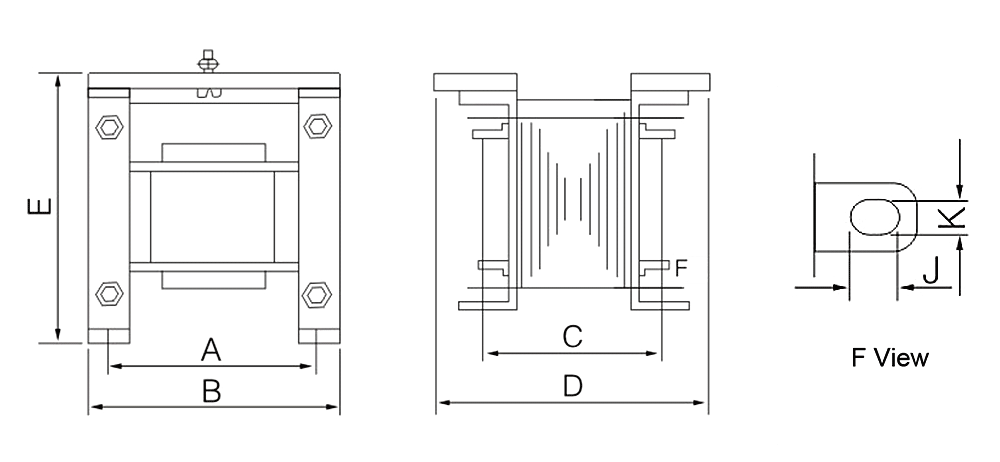

The External Dimensions Diagram of the FBK Series Single-Phase Control Transformer

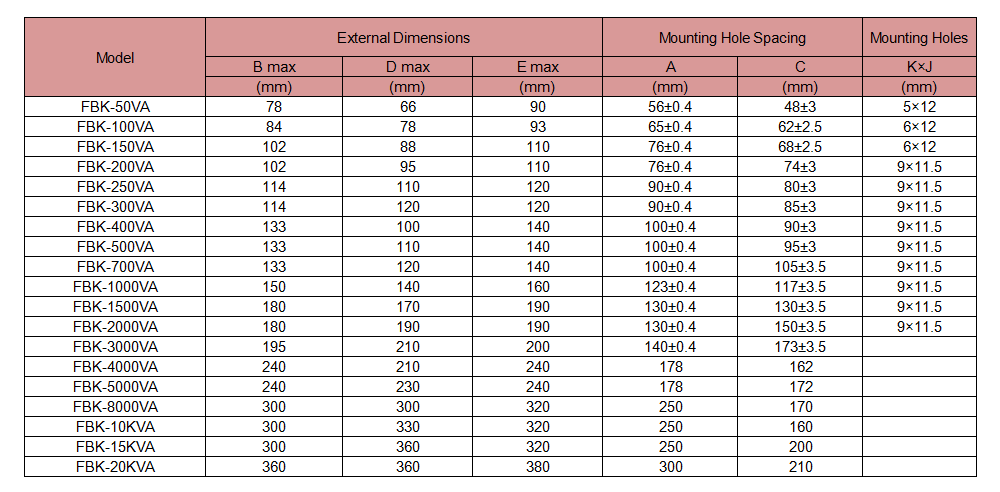

The External Dimensions and Mounting Dimensions of the FBK Series Single-Phase Control Transformer

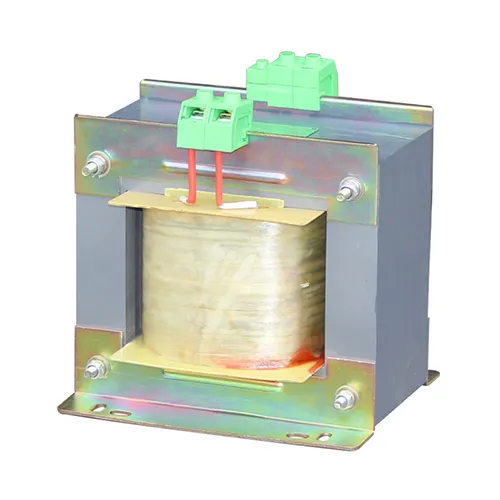

FBK Series Single-Phase Control Transformer
